光控器

您當前的位置： 首頁 產品中心電源光控器

ZM-GK012B

NEMA 3P

路燈光控器及戶外燈光控器
ZM-GK Series Photocontrol Receptacle
   the photoconller can turn on and off light   autormatically according to ambient
 light ;our product ix widely used on street   lighting.garden lighting.area lighting.
other outdoor   lighting etc.

ZM-GK012

Photocontrol Receptacle (NEMA 3P)
NEMA lnterface

2.jpg  　1.jpg  　
ZM-GK012CZM-GK012D
2.jpg   　1.jpg   　

PRODUCT SUMMARY

      All the ZM-GK012   series photocontrol receptacles were designed for the lanterns intended to   accept a
twist-lock photocontrol for power management.

FEATURES

Bakelite boby for   long-life service
Silicone gasket   for better waterproof

image.png  　image.png  　image.png   　

SPECIFICATIONS

Model no.ZM-GK012AZM-GK012BZM-GK012CZM-GK012D
Applicable volt Range0-480VAC
Rated Frequency50/60HZ
Load Rating15A
Ambient Temperature-40
Related Humidity96%
AccessoryBack/Front   CoverOptional
Zinc Alloy lock nut
Mounting bracket
Lead Length6"min
On/Off Level15Lux   On,20Lux off1-5Lux   On,1-5Lux off
LeadAWG12/14/16/18(non-ul)
Cable line(IP65)Optional
CertificationsCE

INSTALLATION

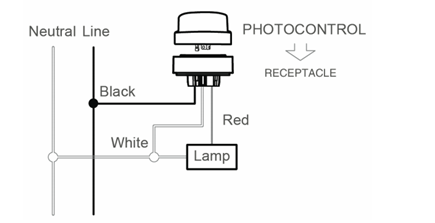

     Disconnect power,wire the receptacle   according to the diagram below

   An arrow indicating NORTH on the top of   the receptacle is used to assist correct direction.
   Adjust the receptacle position if   possible.when the fixture is installed in field.

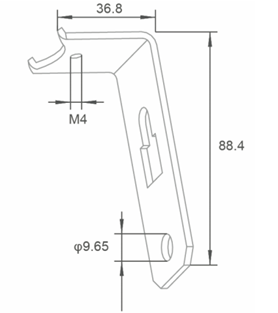

ASSEMBLIES


image.png  　  　image.png
Long and short arm   aluminum supportEqual arm aluminum support


image.png  　  　image.png
Equal arm iron   srpportSplit iron bracket

注：本公司產品不斷更新，該技術參數僅供參考，請以實際產品或產品規格書為準。
